Author Topic: Maytag oven not reaching the correct temp, replaced the oven control board.  (Read 936 times)

Offline Ol' Lonely

  • Technician
  • Member Since: Sep 2011
  • Posts: 54
  • Country: us
  • The Lonely Repairman
This Maytag range model MGR5755QDB was off by 75-120 Deg. F.

I check the oven temperature sensor and it had proper resistance (1050 to 1100 ohms at room temp.)

To repair this range I replaced the oven control board, part # 74009217

I hope you find this information helpful.



This is the Oven Temperature Sensor if you need to order one, part # 12001655

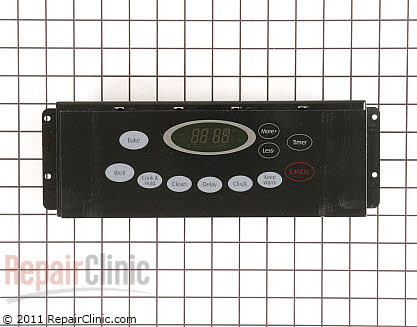

This is the Oven Control Board if you need to order one, part # 74009217




"Depend on us."
