Author Topic: Maytag Gemini problem- upper oven runs all the time  (Read 1455 times)

Offline wv08

  • VIP Member
  • Member Since: Dec 2013
  • Posts: 3
Maytag Gemini problem- upper oven runs all the time
« on: December 21, 2013, 07:39:46 PM »
Hello,

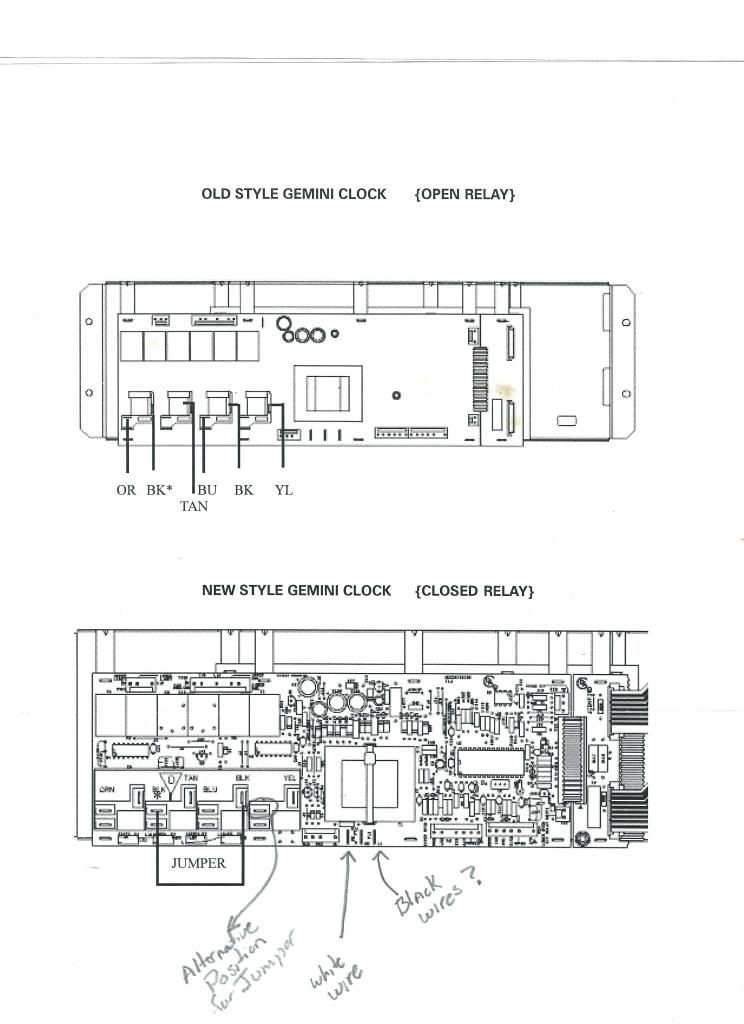

I hope someone can help me with a problem I am having with my model # mer6770aab. The control board completely died and I replaced it with a new board (maytag part #16021467). Everything went ok on the install except for the fact that the upper oven will not shut off- it runs all the time. I wired it exactly as shown on the sheet that came with the part (below)

Since we could not do without a stove until I figured this out, I moved one end of the jumper wire (black) from the far left port it plugs into (between the orange and tan wire ports) per the instructions (which I believe grounds the upper oven) to the port that I labeled "alternative position for jumper)on the below sheet. I figured that grounding the jumper twice would not hurt anything. Turns out I was right- everything works fine except the upper oven is now dead (since I removed the ground- I guess). When I return that ground wire to the port that is shown on the drawing the upper oven starts and will not shut off.

Anyone have any ideas on what could be wrong? The only thing I can think of is the connections at the very bottom of the board might be wrong- I have the white wire plugged into the far left port (I think its labeled "n" )and the black wires are plugged into the port on the far right- nothing is connected to the center port.






Any help is much appreciated!
Dan

Offline dab147315

  • Technician
  • Member Since: Oct 2010
  • Posts: 1491
  • Country: us
« Last Edit: December 22, 2013, 09:37:00 AM by dab147315 »

Offline wv08

  • VIP Member
  • Member Since: Dec 2013
  • Posts: 3
Re: Maytag Gemini problem- upper oven runs all the time
« Reply #2 on: December 22, 2013, 12:49:46 PM »
Correction to my original post- the part number for the replacement is 12001661. I looked at the wrong place on the instruction sheet. It appears I have the correct part.

Offline dab147315

  • Technician
  • Member Since: Oct 2010
  • Posts: 1491
  • Country: us
Re: Maytag Gemini problem- upper oven runs all the time
« Reply #3 on: December 22, 2013, 06:06:23 PM »
http://appliancejunk.com/forums/index.php?action=downloads;sa=view;down=390
This is the manual you can down load.I don't know if it will help you.

Offline dab147315

  • Technician
  • Member Since: Oct 2010
  • Posts: 1491
  • Country: us
Re: Maytag Gemini problem- upper oven runs all the time
« Reply #4 on: December 22, 2013, 06:12:33 PM »
Where did you buy this board from?Here is a good place that rebuilds old board for the future with a two year warranty.http://fixyourboard.com/boards/12001661.html

Offline wv08

  • VIP Member
  • Member Since: Dec 2013
  • Posts: 3
Re: Maytag Gemini problem- upper oven runs all the time
« Reply #5 on: December 22, 2013, 09:52:09 PM »
I purchased it from a local appliance shop. They are sending another one for me to try tomorrow- I hope it works!
