Author Topic: Samsung WF218ANW part identification please  (Read 506 times)

Offline Spooney

  • VIP Member
  • Member Since: Oct 2013
  • Posts: 5
Samsung WF218ANW part identification please
« on: October 22, 2013, 12:33:50 AM »

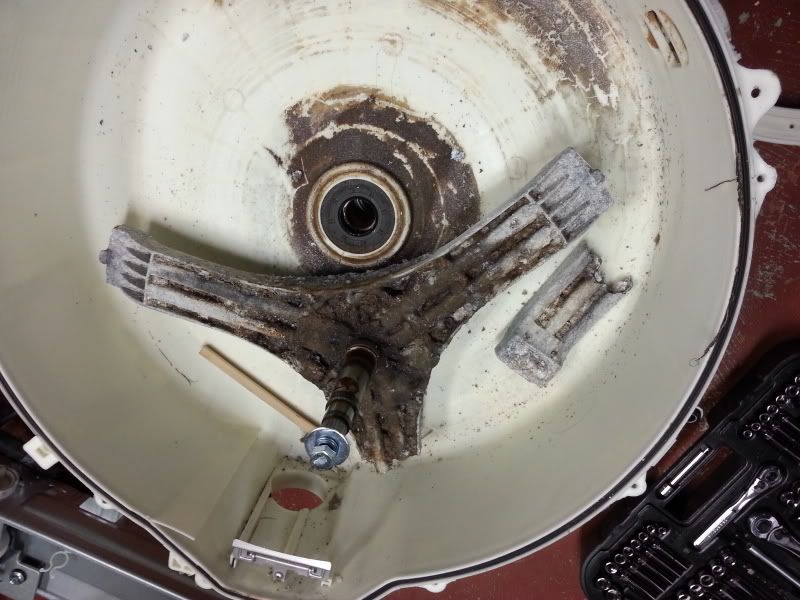

Well recently my Samsung WF218ANW started making a horrible noise during the spin cycle. It sounded like a loud knocking sound coming from the rear of the unit and was so terrible we had to stop using it immediately. I started poking around on the internet and found a service manual for the unit and found a few things that are common issues with these washers. Well I no doubt have a broken support bracket on the rear of the wash tub. The end of one of the three legs snapped right off.  I have included a pic of the part for reference :



Can somebody please tell me the correct part number for this piece? There are part numbers in the service manual however not all of them match up with the part listed ( example : a part that is clearly not a screw is listed as a screw in the description with a part number next to it) . Kind of hard for me to 100 % trust this manual. Also the manual I believe is for a slightly different model year than my washer. Everything looks very similar but I don't want to bank on that being correct.  If somebody out there could help I would greatly appreciate it. Thanks for looking and have a great day.

Offline Spooney

  • VIP Member
  • Member Since: Oct 2013
  • Posts: 5
Re: Samsung WF218ANW part identification please
« Reply #1 on: October 22, 2013, 12:34:53 AM »
I would be willing to pay a few bucks for some good info. I know somebody out there would love to help out a do it yourselfer. Thanks

Offline gscrandall

  • Technician
  • Member Since: Jul 2008
  • Posts: 68
Re: Samsung WF218ANW part identification please
« Reply #2 on: October 22, 2013, 01:20:05 AM »
I was in my parts house actually today in the back and there were 4 of those on the shelf. this should be your part number
  DC97-14875B    repairclinic.com  has them.
My parts guy said there good sellers.  have fun with that......

Offline Spooney

  • VIP Member
  • Member Since: Oct 2013
  • Posts: 5
Re: Samsung WF218ANW part identification please
« Reply #3 on: October 22, 2013, 05:08:07 PM »
Thanks a ton for the reply. I had found this part right before you replied but I appreciate the confirmation. The part number in the service manual was definitely wrong.
